Dunlop DR14628T

In Stock | Best Price | Best Service |

Dunlop DR14628T, 23 x 7.0-12, Main Landing Gear Aircraft Tire

Request Quote

Call 262-639-8550

Dunlop DR14628T

  Features and Benefits

• Bias-ply construction for durability under landing and taxi loads.

• High speed rating suitable for business jet operations.

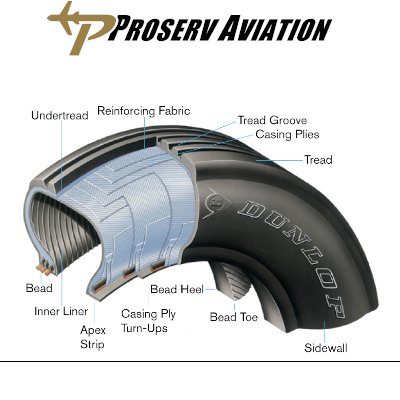

• Dunlop high-performance bias aircraft tyres include inter-tread reinforcing fabric (ITF), which enhances stability at high speeds, reduces tread distortion, protects casing plies and serves as a wear indicator for retreadable tyres.



Dunlop dr14628t Aircraft Tire available to buy at ProservAviation

Installing aircraft tires

Installing aircraft tires is more specialized than installing car or truck tires, because it must follow aviation maintenance procedures (typically under FAA/EASA rules) and often requires licensed mechanics (A&P). Here’s a high-level overview of the process:

1. Preparation & Safety

1. Verify maintenance manual: Always follow the Aircraft Maintenance Manual (AMM) or Component Maintenance Manual (CMM) for the specific wheel and tire assembly.

2. Check tools: Torque wrenches, tire inflation cage (or approved device), nitrogen supply (never plain compressed air), bead lubricant, protective equipment.

3. Inspect new tire: Confirm correct part number, ply rating, speed rating, and approval for the aircraft.


2. Removing the Old Tire

1. Deflate the old tire completely.

2. Remove wheel from the aircraft per AMM instructions (jack aircraft, secure with stands).

3. Split the wheel halves (most aircraft wheels are two-piece bolted assemblies).

4. Separate the old tire from the wheel halves.

5. Inspect the wheel halves for cracks, corrosion, or wear—refer to service limits.


3. Preparing the New Tire

1. If tubeless: Ensure bead seat area is clean and lubricated.

2. If tube-type: Insert a new tube (never reuse old tubes) and slightly inflate to remove wrinkles.

3. Use only approved lubricants (like tire bead soap or mounting compound).


4. Mounting the Tire on the Wheel

1. Position the tire on the lower wheel half.

2. Install tube (if required), ensuring proper alignment of valve stem.

3. Place the upper wheel half and assemble bolts.

4. Torque bolts in a crisscross/star pattern to manufacturer’s specification.

5. Recheck torque after a short settling period (per manual).


5. Inflation & Seating

1. Inflate inside an approved tire inflation safety cage.

2. Use dry nitrogen for inflation to reduce moisture and expansion risks.

3. Inflate in steps: partially inflate, deflate, and re-inflate to help seat the beads and tube properly.

4. Inflate to service pressure per aircraft manual.

5. Inspect for bead seating, tube pinching (if tube-type), or bulges.


6. Reinstallation

1. Reinstall the wheel assembly on the aircraft per AMM.

2. Torque axle nut or bolts as specified.

3. Safety wire or cotter-pin as required.

4. Service with final nitrogen inflation and verify pressures match operating requirements.


7. Final Checks

1. Leak check with soap solution.

2. Ensure valve core and cap are tight.

3. Record maintenance action in logbooks per regulatory requirements.


⚠️ Important Notes:

• Aircraft tire installation must be done by, or under the supervision of, a licensed aircraft mechanic.

• Never exceed inflation limits; over-pressurization can cause explosions.


Always consult the specific AMM for your aircraft type.
